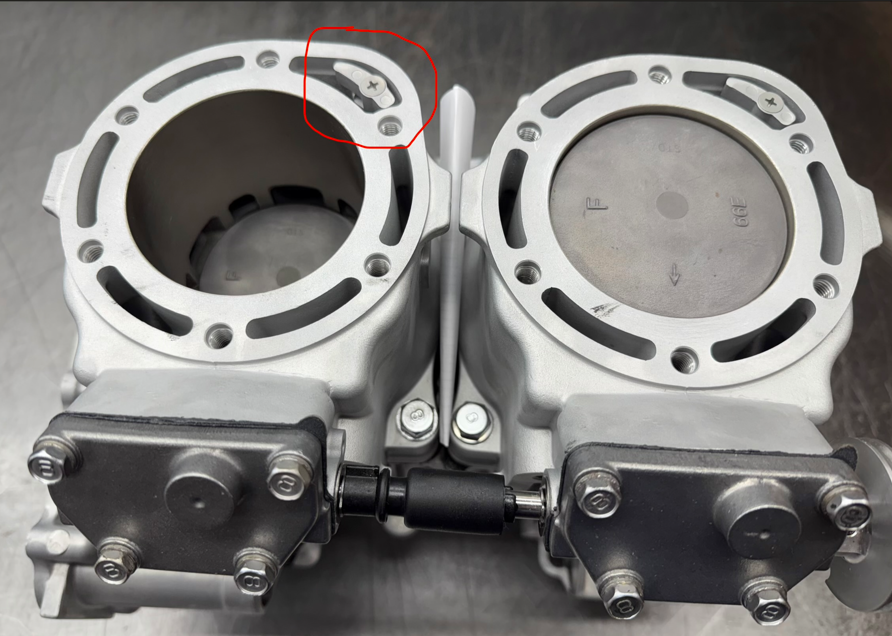

A sacrificial anode (circled) mounted on a PWC cylinder head assembly

Sacrificial Anodes: Why That Ugly Zinc Block Is Doing Its Job

Any PWC that spends time in salt or brackish water is sitting in an electrolyte — a solution that conducts current between metals. Wherever two dissimilar metals are both wetted by the same water and connected electrically (bolted together, bonded through a common ground, or simply touching), a small galvanic cell forms. One metal gives up electrons and slowly dissolves; the other collects them and is protected. That's ordinary battery chemistry, except here nobody wants a battery — they want the jet pump housing, driveshaft, and trim hardware to still be metal next season.

The problem anodes solve

Left alone, a hull's mix of stainless fasteners, bronze fittings, and aluminum castings will happily set up that cell among themselves, and the least noble metal in the mix — usually the aluminum — pays for it. That's expensive metal to lose. So instead, an even less noble metal gets deliberately wired into the circuit: a sacrificial anode. Sitting lower on the galvanic series than everything around it, it becomes the anode for the whole system and corrodes preferentially, feeding electrons to protect the rest. The zinc or aluminum block isn't malfunctioning when it pits and wastes away — that's the entire point of installing it.

Why the anode has to actually be in the circuit

Cathodic protection only works if two conditions hold: an electron path between the anode and the part it protects (direct metal-to-metal contact or a bonding wire) and an ion path through the surrounding water. Paint over the anode's mounting face, let corrosion build an insulating layer at the contact point, or run the ski in water too resistive to carry current well, and the anode stops protecting anything even though it looks intact. That's why the mounting surface needs to be clean bare metal, not painted or coated, at installation.

Where to find them

Exact placement varies by manufacturer and model year, so the owner's manual is the authority, but the pattern is consistent: PWCs are raw-water propelled, so the highest-value metal at risk is the jet pump — the housing, impeller shaft, and bearing carrier. Expect at least one anode bolted near the pump intake grate or on the driveshaft coupling, directly in the path of the water the pump ingests. Some models add a second anode near the steering nozzle or trim system, since those are also submerged aluminum parts a long way from the engine's main ground. Engine-block anodes show up less often on PWCs than on inboard boats, since most PWC engines are raw-water cooled without a separate block circuit to protect — but where a model uses a closed loop or heat exchanger, check the manual for an anode there too.

Judging wear

An anode doesn't need to disappear before it's done its job — it needs enough mass and surface area left to keep supplying current. A widely used rule of thumb in marine maintenance is to swap an anode once it's roughly half consumed, rather than waiting for it to vanish. Treat that as general practice, not a number stamped in a spec book: a small anode on a ski ridden hard in saltwater can lose that much material in a season, while the same anode mostly seeing brackish water might last two or three. 50% consumed is a reasonable point to start planning a replacement, and it's worth inspecting more often with regular saltwater use.

Uneven wear is normal — anodes often waste in an hourglass or lopsided shape rather than shrinking evenly, since current density isn't uniform across the surface. What matters is remaining mass and surface area, not a tidy shape. What isn't normal is skipping inspection until the anode is gone entirely: once it's fully consumed, the next-least-noble metal in the circuit — typically a cast aluminum pump housing — starts absorbing the current instead, showing up as pitting and a chalky white oxide on aluminum that should be conspicuously absent.

Zinc, aluminum, and the water actually ridden in

Zinc has been the traditional PWC and boat anode material for decades and still performs well in the environment it's designed for: full-strength seawater, where chloride content is high and resistivity is low enough to sustain current flow easily. It becomes a poor choice as salinity drops — in brackish or freshwater, zinc is prone to forming a passive oxide layer that shuts down current flow, so the anode looks intact but has effectively stopped protecting anything.

Aluminum handles a wider range of conditions. It provides reliable protection in saltwater, continues working reasonably well in brackish water where zinc struggles, and carries more current-producing capacity per pound, so an aluminum anode of the same size can last longer. That versatility is why aluminum has become the default material on a lot of current PWC production, even for skis that spend most of their life in saltwater. If a ski's history is unclear or it moves between saltwater and brackish water, aluminum is the safer default; a ski that lives exclusively in full-strength seawater is still served well by zinc. The manual will have the manufacturer's specified material, and it helps to avoid mixing anode types arbitrarily — match the anode to the water it will actually see.

The actual replacement

Swapping an anode comes down to a few mechanical steps: pull the retaining bolt, work the old anode free (corrosion products can make this stubborn, so expect some persuasion), clean the mounting surface back to bare metal, and torque the new anode down to spec. The one step worth real care is that cleaning — any paint, sealant, or corrosion film left at the contact face can defeat the whole system, leaving a ski that looks protected while it isn't. A few minutes with a wire wheel there is the difference between an anode that works and one that's just decoration.
