Press the start button and get a single click with no crank, a rapid machine-gun clicking, or dead silence, and the instinct is usually "starter's dead." Sometimes that's right. Often it isn't. The starting circuit on a PWC is a chain of four stages — battery, relay, solenoid, starter motor — and each stage fails in a distinct way that produces a distinct symptom. Working through them in order saves both money and the frustration of reinstalling a starter motor that was never the problem — a few extra minutes of checking is worth it even when everything points at the starter.
The Circuit, Stage by Stage
Power starts at the battery, runs through a main fuse, and reaches a small relay that's triggered by the start button (or the ECU, on models with security/immobilizer logic). That relay is a low-current switch — it doesn't move enough current to spin a starter motor, it just closes a circuit that lets a much larger current flow somewhere else. The "somewhere else" is the solenoid, mounted on or near the starter motor itself. The solenoid is a heavy-duty electromagnetic switch that does two jobs at once on most starters: it shoves the starter's drive gear into mesh with the flywheel, and it closes the high-current connection straight from the battery to the starter motor. Only once that connection closes does real cranking current flow, which is why the solenoid is often the loudest, most decisive click in the chain.
Each symptom maps roughly to where the chain breaks:
- Total silence — usually points upstream: dead or severely undercharged battery, blown fuse, bad ignition/safety switch (lanyard, seat switch), or a relay that isn't getting triggered at all.
- A single solid click, no crank — classic solenoid or starter symptom: the small relay is doing its job, but the solenoid isn't pulling in properly, or it's pulling in but the starter motor itself can't turn (seized, worn brushes, or a bad ground).
- Rapid clicking — almost always a battery that has voltage at rest but sags hard the instant real current is demanded, since the solenoid pulls in, drops the voltage as the starter tries to draw current, drops out, and repeats.
Testing the Battery First
Before touching a single connector, confirm the battery is actually good under load, not just showing a number at rest. A battery can read a plausible resting voltage and still collapse the instant it's asked for the high current a starter demands — that's the entire mechanism behind rapid clicking. A load test (many auto parts stores will run one free, or a basic clamp-on load tester works) is the only way to know for sure, since resting voltage alone can be misleading, especially on a battery that's been trickle-charged recently. Check the terminals while there — corrosion or a loose clamp here mimics a dead battery.
Testing the Relay
The small starting relay is usually a plug-in unit, which makes it the easiest stage to test. With the key on and the start circuit engaged, listen and feel for it — it should produce a distinct mechanical click as its internal contacts close. No click at all with power confirmed at the relay's input pins means the relay itself is bad, or the trigger signal isn't reaching it (check the lanyard/safety switch and any interlock in the circuit). Swapping in an identical relay from elsewhere on the ski, if one exists in the wiring harness, is the fastest confirm-or-rule-out test available — if the swap fixes it, the relay was bad.
Testing the Solenoid
The solenoid can be bench-tested or tested in place. In place, check for battery voltage at the solenoid's trigger terminal when the start button is pressed — voltage present there but no click from the solenoid means the solenoid's coil has failed internally. If it clicks but the starter still doesn't turn, the next check is whether the solenoid is actually passing the big-current connection through, not just clicking. That's done with a voltage drop test across the solenoid's main battery-to-starter contacts while cranking: touch a meter's leads to the input and output studs during a crank attempt, and a healthy solenoid should show a reading close to zero. Anything more than a small fraction of a volt means the internal contacts are burned or pitted and are choking off current even though the solenoid is mechanically clicking — a very common failure mode on solenoids that have seen years of service, since those contacts arc every single time they close.
A solenoid can also be tested off the ski with a fully charged battery and jumper leads: apply power to the small trigger terminal and ground, and listen/feel for the plunger pulling in with an audible clunk. No pull-in confirms a dead coil.

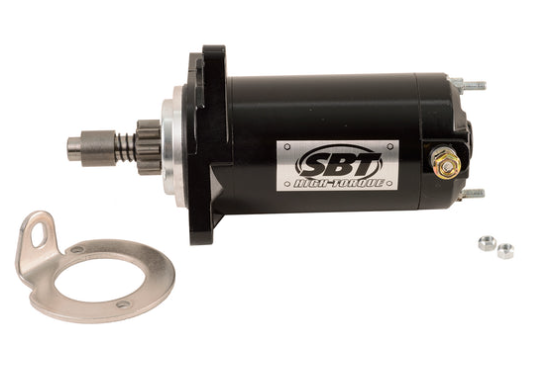

Testing the Starter Motor
If voltage is confirmed reaching the starter motor's main terminal (through the solenoid) and it still won't turn, the starter itself is the suspect: worn brushes no longer making contact with the commutator, a shorted or open armature winding, or a seized bushing/bearing. A quick sanity check is a ground test — a starter motor is only as good as its ground path, and a corroded or loose ground strap between the engine and the battery negative can produce every symptom of a bad starter motor without the starter being at fault at all. Clean and re-torque that ground connection before condemning the starter.
Beyond that, a starter motor either needs to come off for a bench test (a fully charged battery and jumper cables applied directly to its terminals off the ski, watching whether it spins freely under no load) or it goes straight to replacement, since brush and bushing service on most small marine starters isn't cost-effective compared to a remanufactured unit.
Replacing the Failed Component
Relay replacement is the easiest job in this chain — it's a plug-in part. Confirm polarity and pin orientation match before swapping, since some relays that look interchangeable have different internal pin-outs.
Solenoid replacement usually means removing the starter motor as an assembly, since on most small engines the solenoid is bolted directly to the starter housing rather than being a separate remote unit. The battery needs to come off first, every time, before working at the starter's main terminal — it stays hot to the battery any time it's connected, and a wrench bridging that terminal to a grounded part of the engine will arc and can burn skin or start a fire. With the battery disconnected, label and remove the wiring at the starter (main battery cable, solenoid trigger wire, and ground if it terminates there), unbolt the starter from the engine block, and swap the solenoid per the replacement unit's instructions before reinstalling.
Starter motor replacement follows the same disconnect-battery-first sequence. Remove the wiring and mounting bolts, noting orientation, and support the starter's weight while pulling the last bolt so it doesn't drop and strain a wire still attached. Before bolting the new unit in, check that the mounting surfaces are clean and that any shim or spacer from the old installation gets reused — misalignment here transmits vibration into the drivetrain and can chew up the flywheel's ring gear over time. Torque the mounting bolts to the spec in the service manual (exact figures vary by model), reconnect wiring in the order it was removed, reconnect the battery last, and confirm a clean crank before buttoning everything back up.
Keeping It From Happening Again
Most starting-circuit failures trace back to corrosion, not a part simply wearing out on its own. Battery terminals, the ground strap, and the solenoid's main studs all benefit from being cleaned and lightly greased with dielectric compound at the start of the season — a few minutes of prevention that goes a long way toward avoiding the exact troubleshooting sequence above. A battery kept on a maintainer over the off-season also does the most to head off the single most common cause of a ski that clicks instead of cranks come spring.
